• Axle, 3.17 final drive ratio
• GVWR, 4409 lbs. (2000 kg)
• Driver shift control, tap-up/tap-down on shifter
• Drivetrain, all-wheel drive
• Trailering provisions (AWD models.)
• Suspension, Ride and Handling
• Steering, power, non-variable ratio, electric
• Brakes, 4-wheel antilock, 4-wheel disc
• Brakes, front and rear, electric
• Brake, electronic parking
• Mechanical Jack with tools

• Wheels, 17" (43.2 cm) Silver-painted aluminum
• Tires, 225/60R17 all-season, blackwall
• Wheel, spare, 16" (40.6 cm) steel
• Tire, compact spare 16" (40.3 cm)
• Fascia, front and rear lower insert, Black
• Shutters, front lower grille, active
• Moldings, Anthracite lower bodyside
• Headlamps, halogen
• Headlamp control, automatic on and off
• IntelliBeam, auto high beam control
• Tail lamps, halogen
• Lamp, LED center high-mounted stop/brake lamp
• Mirrors, outside power-adjustable, manual-folding, Black
• Windshield, solar absorbing
• Glass, solar absorbing
• Wiper, rear intermittent
• Ornamentation, Trailblazer lettering
• Ornamentation, AWD badge
• Liftgate, manual
• Door handles, body-color
• Fuel filler cap, locking

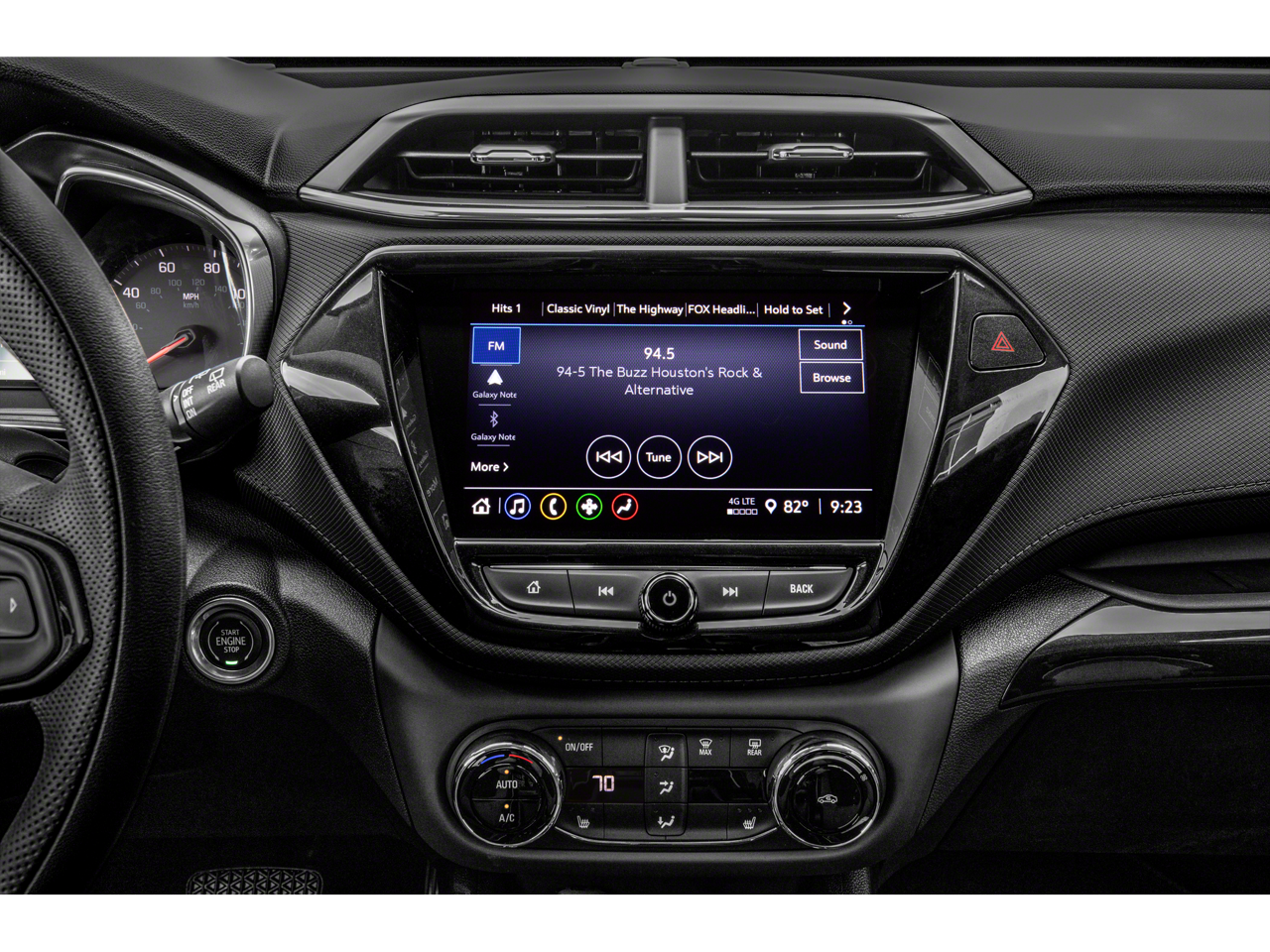

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system, enhanced performance with amplifier
• Display, 7" diagonal color touchscreen
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Wireless Apple CarPlay/Wireless Android Auto
• Active Noise Cancellation

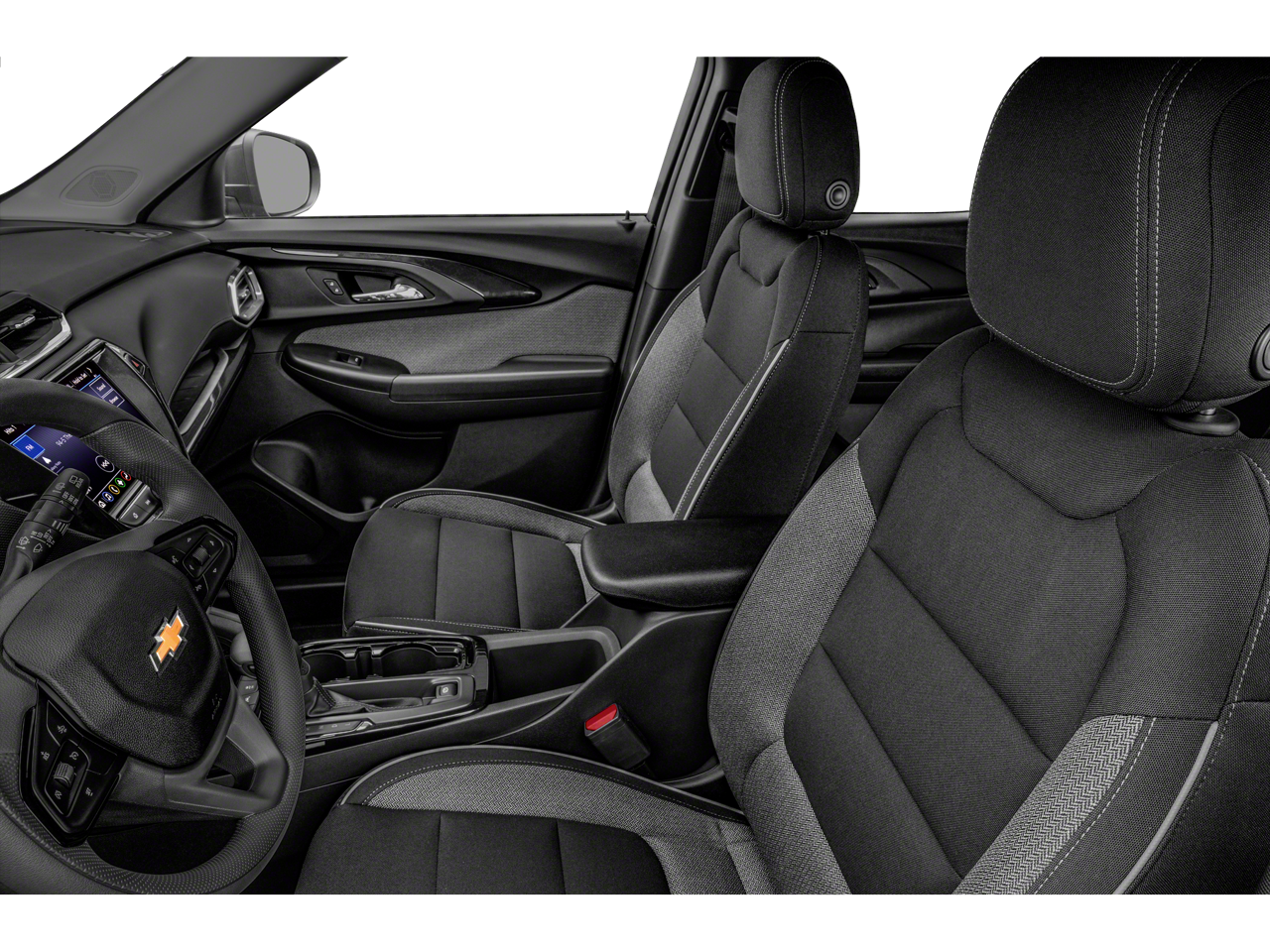

• Seats, front bucket
• Seat trim, Cloth
• Seat adjuster, driver 6-way manual
• Seat adjuster, front passenger 4-way manual
• Seatback, front passenger flat-folding

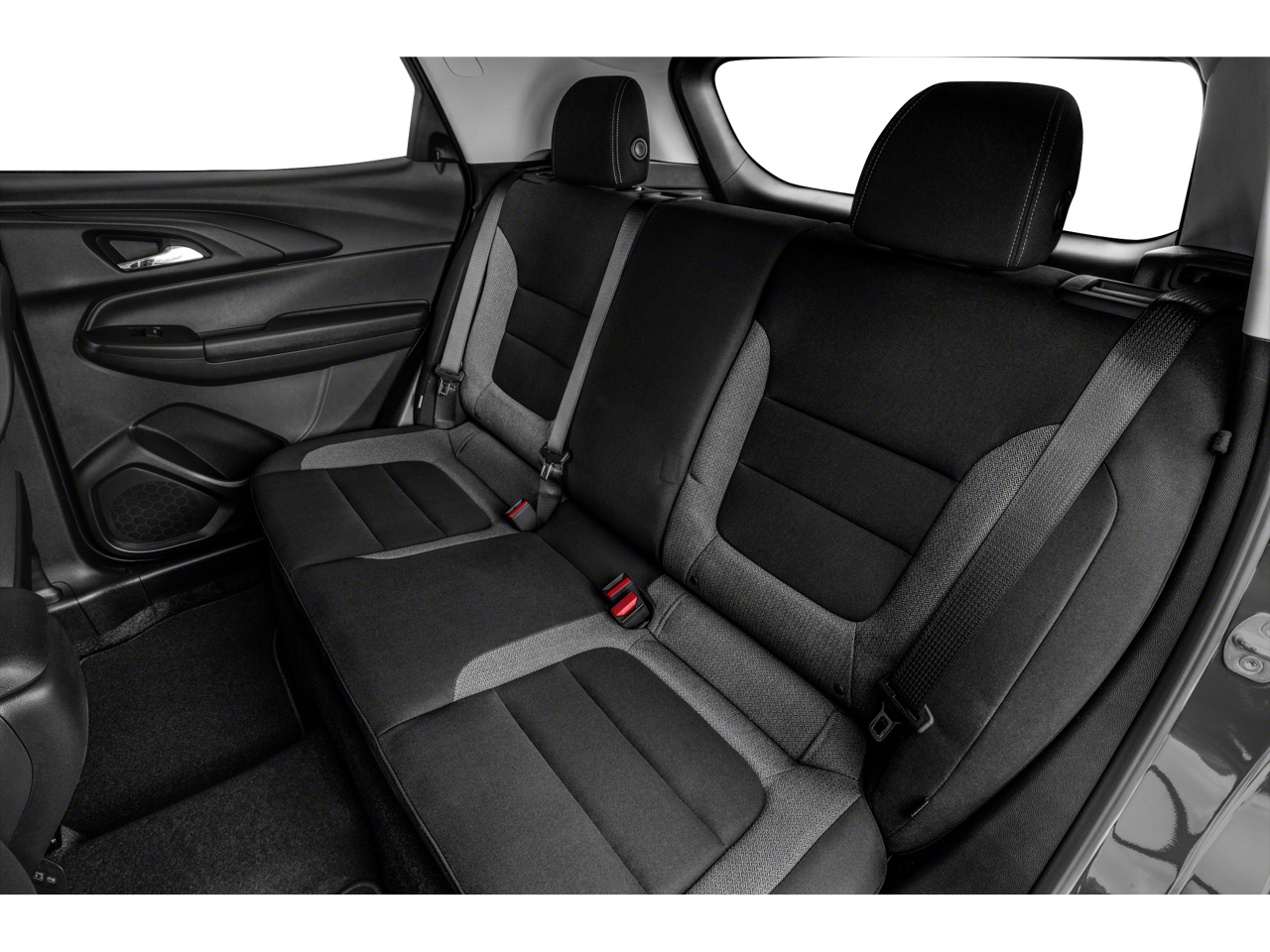

• Seat, rear 40/60 split-bench, folding (60 percent on passenger side)
• Head restraints, front, 2-way adjustable
• Head restraints, rear outboard, 4-way adjustable
• Knee bolster, driver and front passenger
• USB ports and auxiliary input jack one type-A USB, one type-C USB, and one auxiliary input jack

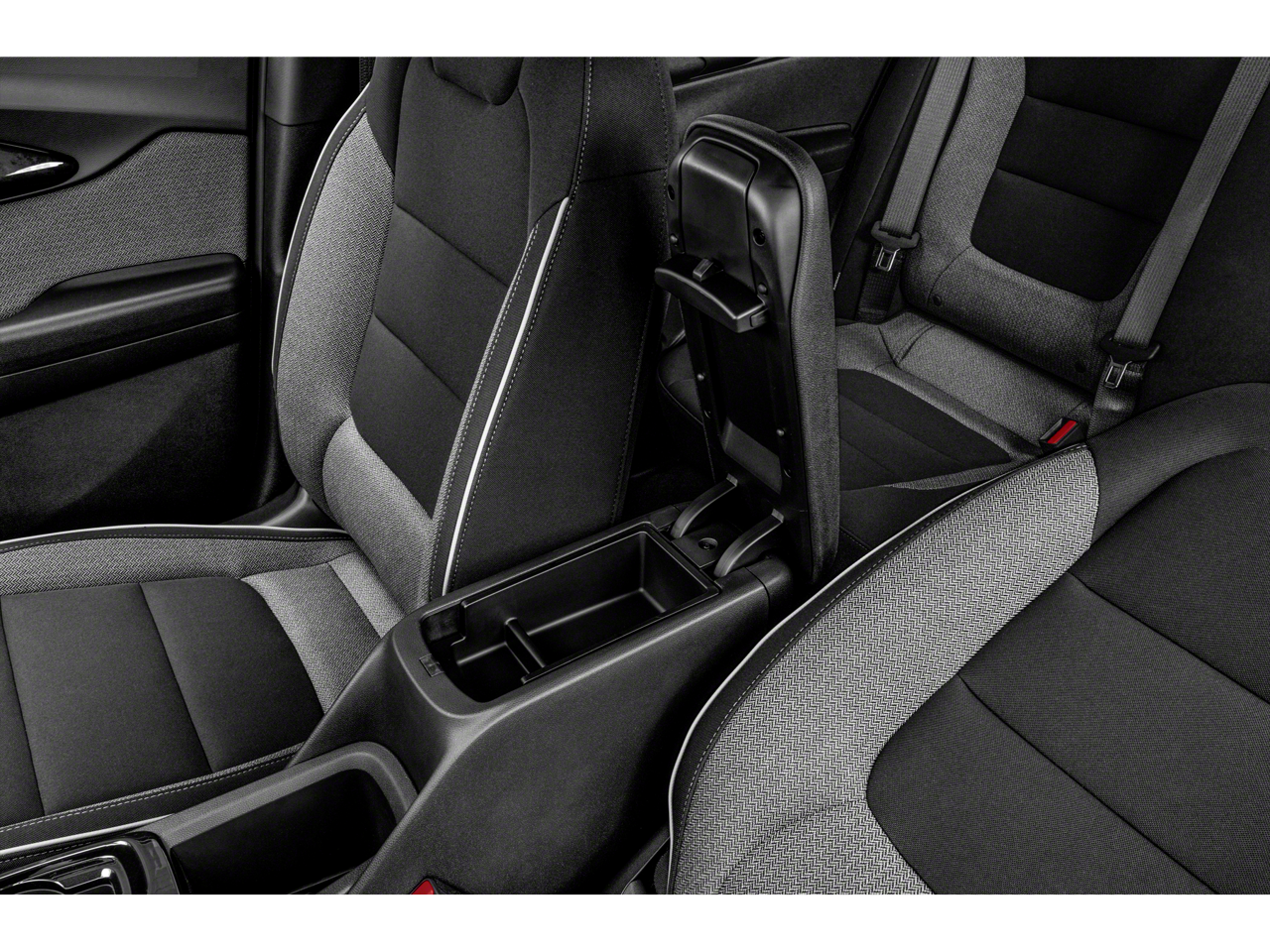

• Console, floor, with armrest
• Floor mats, front
• Floor mats, rear

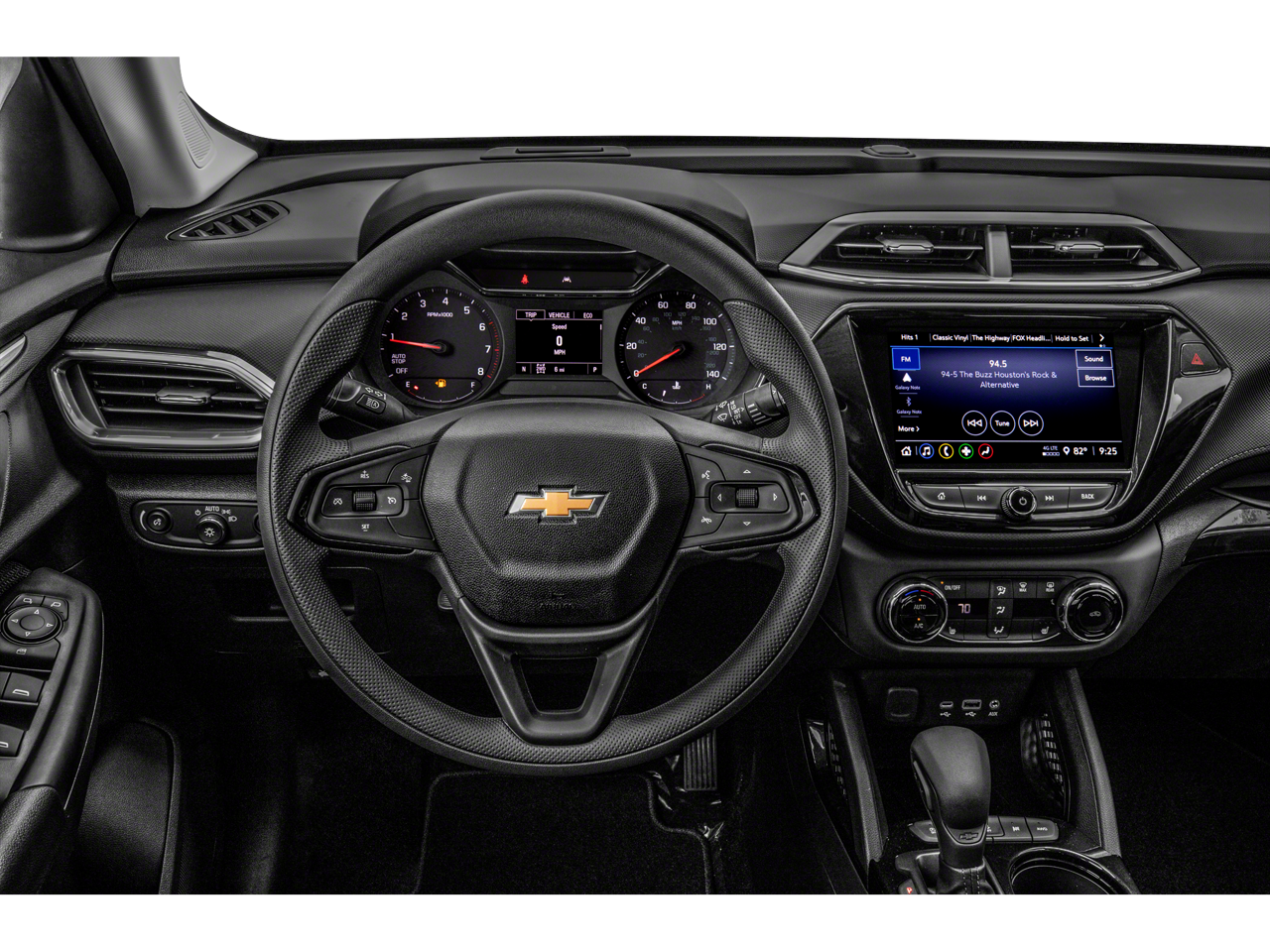

• Steering wheel, polyurethane 3-spoke
• Steering wheel controls mounted audio, Driver Information Center, Forward Collision Alert gap adjust and phone interface controls
• Steering column, tilt and telescopic
• Driver Information Center, 3.5" diagonal monochromatic display
• Vehicle health management provides advanced warning of vehicle issues
• Compass display
• Windows, power with driver express-up/down and front passenger and rear express-down
• Keys, (2) foldable
• Theft-deterrent system, electrical, unauthorized entry
• Air conditioning, single-zone manual
• Air filter, cabin
• Heating ducts, under front seats, rear vent
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger vanity mirrors, covered
• Assist handle, driver
• Assist handle, front passenger
• Assist handle, rear outboard
• Lighting, interior, overhead courtesy and dual reading lamp
• Lighting, interior, roof, rear courtesy
• Lighting, rear cargo compartment lamp
• Shift knob, satin silver and chrome
• Map pocket, driver seatback
• Map pocket, front passenger seatback, lateral mesh
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Automatic Emergency Braking
• Front Pedestrian Braking
• Daytime Running Lamps, signature LED
• Airbags, driver and front passenger frontal and knee, seat-mounted side-impact and roof rail-mounted head-curtain for all outboard seating positions and Passenger Sensing System for front passenger (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera
• Lane Keep Assist with Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Seat belts, 3-point, driver and front passenger, height-adjustable includes pretensioners and front passenger load limiter
• Seat belts, 3-point rear, all seating positions
• Door locks, rear child security
• LATCH system (Lower Anchors and Tethers for CHildren) for child restraint seats, second row, 2 lower anchors for outboard seating positions only, 3 top tether anchors for all 3 seating positions
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System
• Tire Fill Alert
• Tire Pressure Display by tire (Does not monitor spare tire.)
• Remote panic alarm

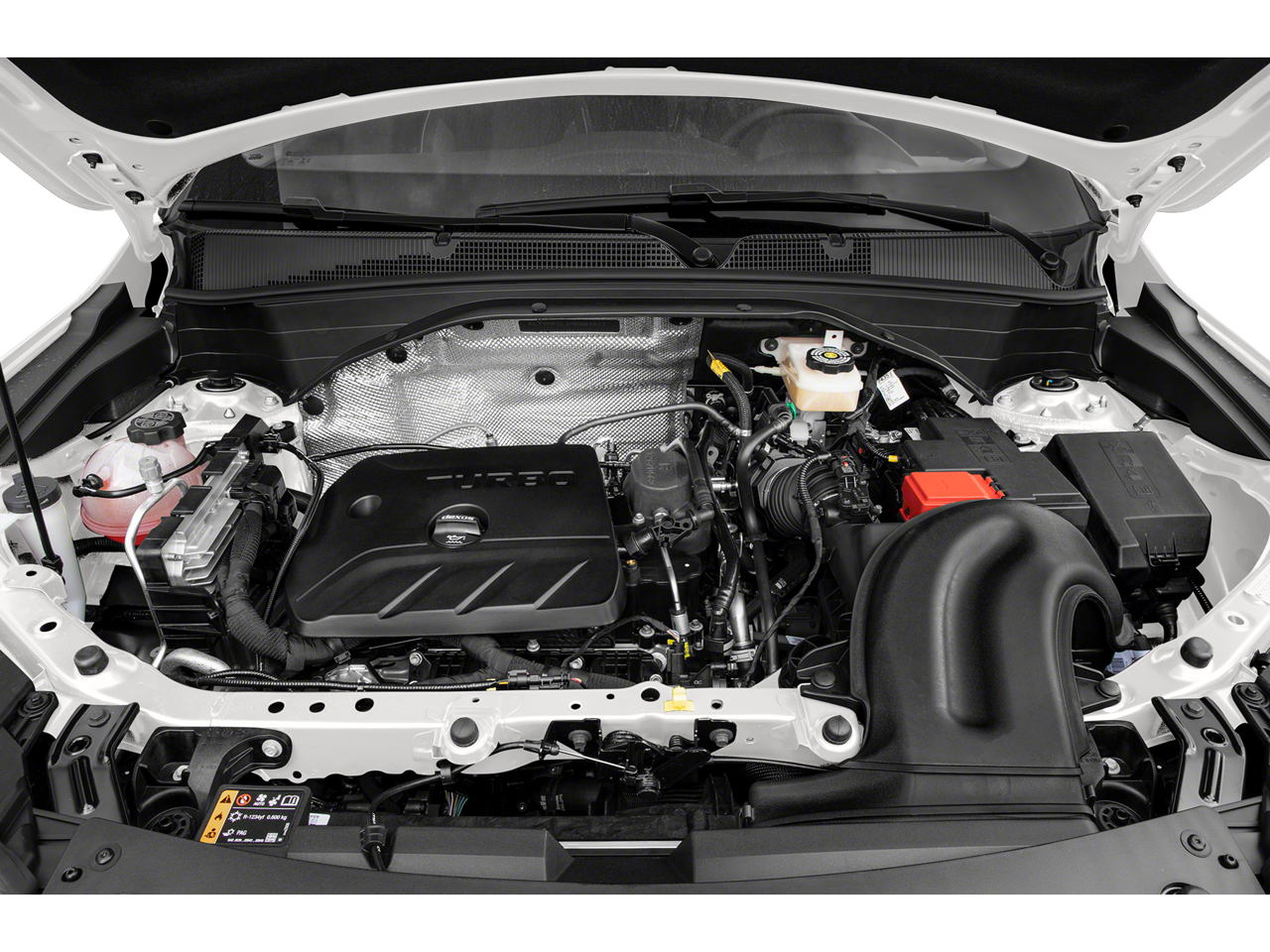

ENGINE, ECOTEC 1.3L I3 TURBO DOHC SIDI WITH VARIABLE VALVE TIMING (VVT)

• (155 hp [115 kW] @ 5600 rpm
• 174 lb-ft torque [236 N-m] @ 1600 rpm) (STD)

• IOR
• L3T
• M3F
• WPN

• Vehicle
• EPA Classification: Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 28
• EPA Fuel Economy Est - City (MPG): 26
• EPA Fuel Economy Est - Hwy (MPG): 30
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Watt's Linkage
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.8 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 10.4 x - TBD -
• Tires
• Front Tire Order Code: QA3
• Rear Tire Order Code: QA3
• Spare Tire Order Code: ZDC
• Front Tire Size: 225/60R17
• Rear Tire Size: 225/60R17
• Spare Tire Size: 16"
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 37.38
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 13.2
• Exterior Dimensions
• Wheelbase (in): 103.9
• Length, Overall (in): 173.5
• Width, Max w/o mirrors (in): 71.2
• Height, Overall (in): 65.7
• Track Width, Front (in): 60.9
• Track Width, Rear (in): 61.3
• Min Ground Clearance (in): 8
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 54.4
• Cargo Volume to Seat 2 (ft³): 25.3
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 98.2
• Front Head Room (in): 40
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 55.4
• Front Hip Room (in): 52.3
• Second Head Room (in): 38.4
• Second Leg Room (in): 39.4
• Second Shoulder Room (in): 53.8
• Second Hip Room (in): 45.7
• Summary
• Vehicle Name: Chevrolet Trailblazer
• Body Style: Sport Utility
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.4
